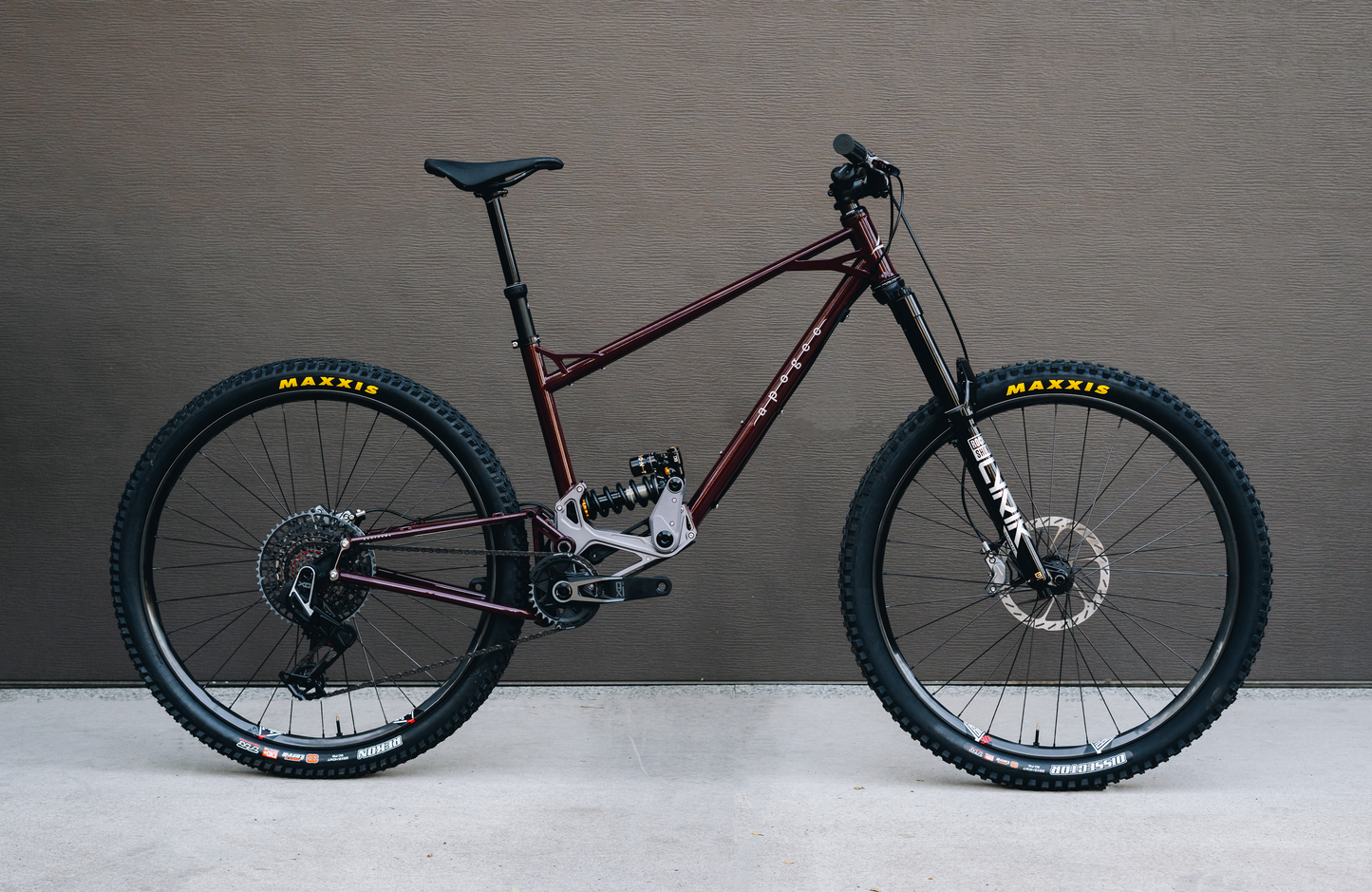

The Apogee One is an innovative 140mm trail bike that features our precision-machined Free Float Module suspension and handmade steel DuoFrame. It’s a modern classic that pairs advanced suspension kinematics with a frame that’s specifically tuned for a smooth and playful ride.
We're excited to offer our first batch of 25 bikes, The Founders Edition. Each will be hand-welded, machined, and built exclusively in the Pacific Northwest, USA. Deliveries will start on a rolling basis 3-4 months after the close of the order window on September, 15th. Founding Riders will receive monthly updates as their bikes go through production. Be part of the Founders Edition!
This is a pre-order limited to 25 Special Founders Edition bikes. Each will be hand welded, machined, and built to order exclusively in the Pacific Northwest, USA. Deliveries will start on a rolling basis 3-4 months after the close of the order window on September, 13th. Founding Riders will receive special updates as their bikes go through production. Be part of the Founders edition!
Couldn't load pickup availability
- Shipping: Frame $75, Complete Bike $150 to Continental United States
- Photos may show custom options and do not reflect exact build kits
- Purchase Terms & Conditions
![Apogee One](http://apogee.bike/cdn/shop/files/DSC03883.jpg?v=1724793182&width=1445)
![Apogee One](http://apogee.bike/cdn/shop/files/DSC03544.png?v=1723003761&width=1445)
![Apogee One](http://apogee.bike/cdn/shop/files/DSC03583.png?v=1723003762&width=1445)
![Apogee One](http://apogee.bike/cdn/shop/files/DSC03595.png?v=1723003760&width=1445)
![Apogee One](http://apogee.bike/cdn/shop/files/DSC03588_1_3.png?v=1723065491&width=1445)
![Apogee One](http://apogee.bike/cdn/shop/files/DSC03596.png?v=1723003760&width=1445)
![Apogee One](http://apogee.bike/cdn/shop/files/Color_Options_2fcb421b-ef5c-4edb-869d-9958d8d2fd81.png?v=1724511846&width=1445)
![Apogee One](http://apogee.bike/cdn/shop/files/DSC03562-high-res.png?v=1723649918&width=1445)
![Apogee One](http://apogee.bike/cdn/shop/files/DSC03894.jpg?v=1724794252&width=1445)
Frame & Build Details

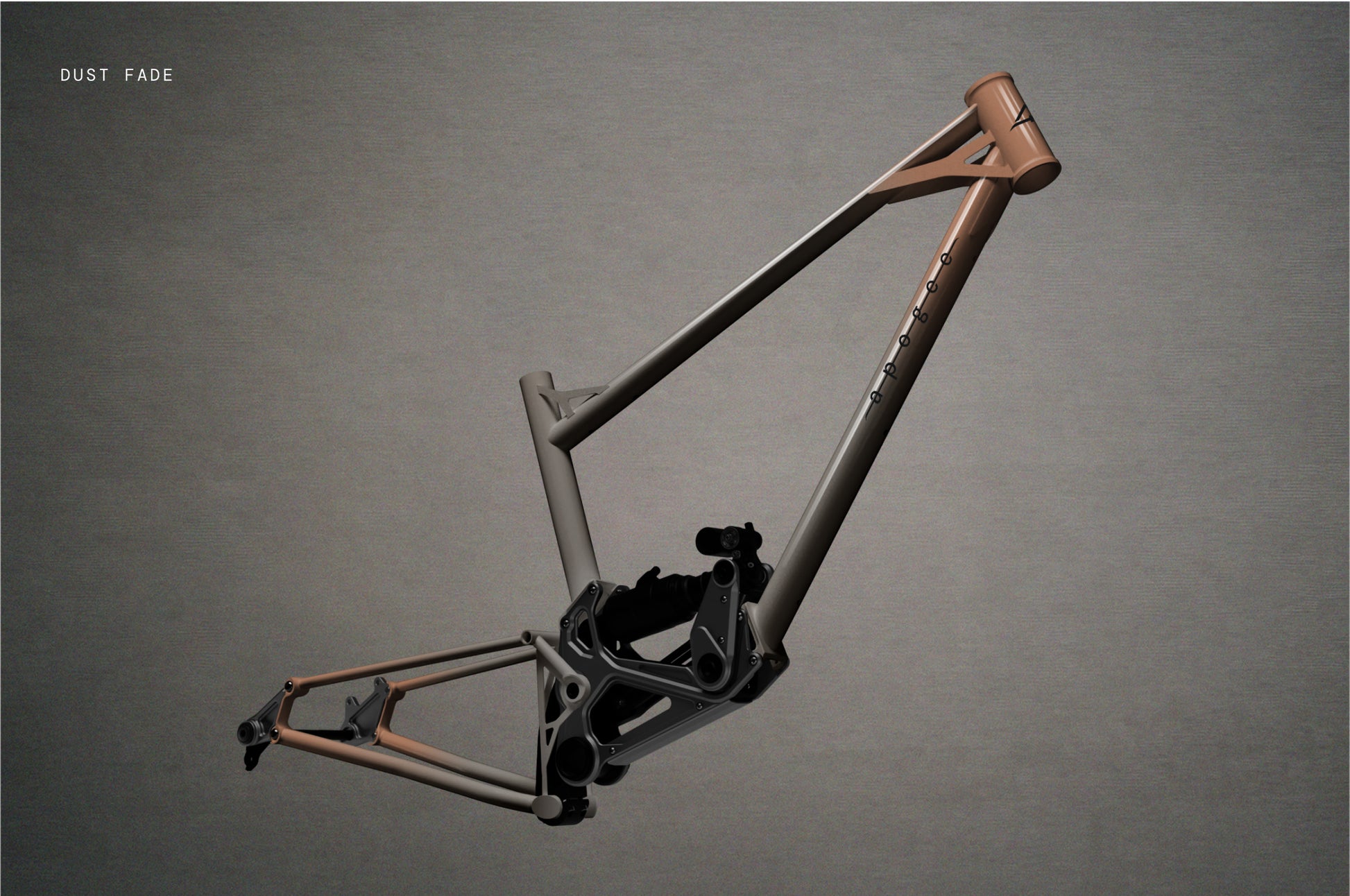

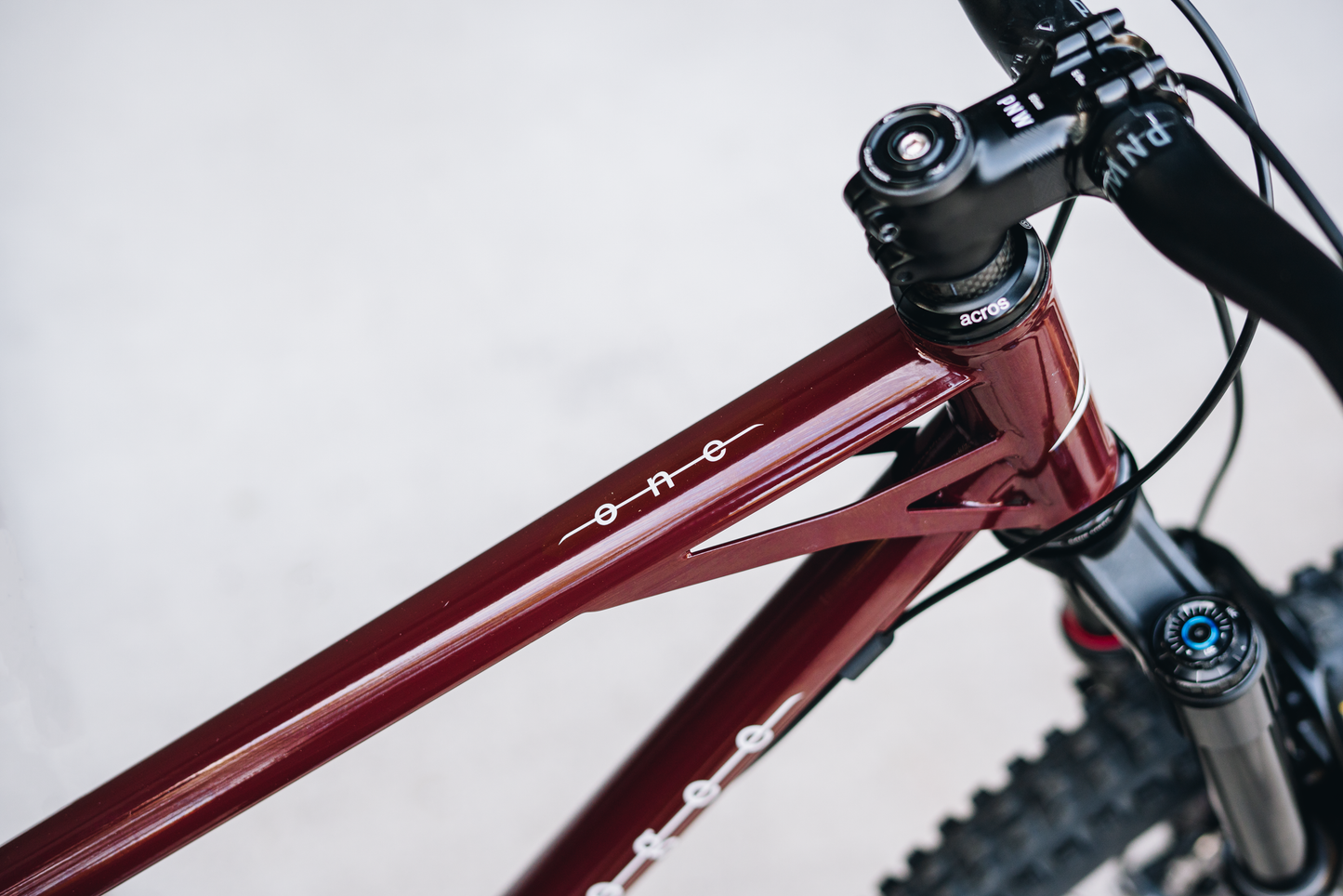

Frame Design
The modular design of Apogee One means all three frame components are tuned perfectly to maximize the ride feel from front to rear.
The Free-Float Module provides a stiff foundation for suspension actuation while the swingarm and front triangle are tuned to provide trail hugging flex.
The strength and durability of steel allow us to shape it for optimal flex, providing excellent handling without feeling noodly. We decoupled the frame from the suspension to achieve the best of both; a tuned frame that carves and rides smoothly with a compact, advanced suspension system that remains supple yet avoids harsh stiffness.
Frame Specifications
Sizing Guidance
- Small (SM): 4’ 11” - 5’ 3”
- Medium (M): 5’ 2” - 5’ 8”
- Medium Large (M/L): 5’ 5” - 5’ 11”
- Large (L): 5’ 8” - 6’ 2”
- X-Large (XL): 5’ 10” - 6’ 6”
Included with Frame Purchase
- Wolf Tooth Performance Headset
- Wolf Tooth Seatpost Clamp
- Wolf Tooth Rear Axle
- SRAM Universal Derailleur Hanger
Detailed Specifications
- Rear Suspension Travel: 140mm
- Shock Size: 185x55 Trunnion Shock
- Fork Compatibility: 150-160mm fork compatible
- Headset: ZS44/28.6 - EC44/40

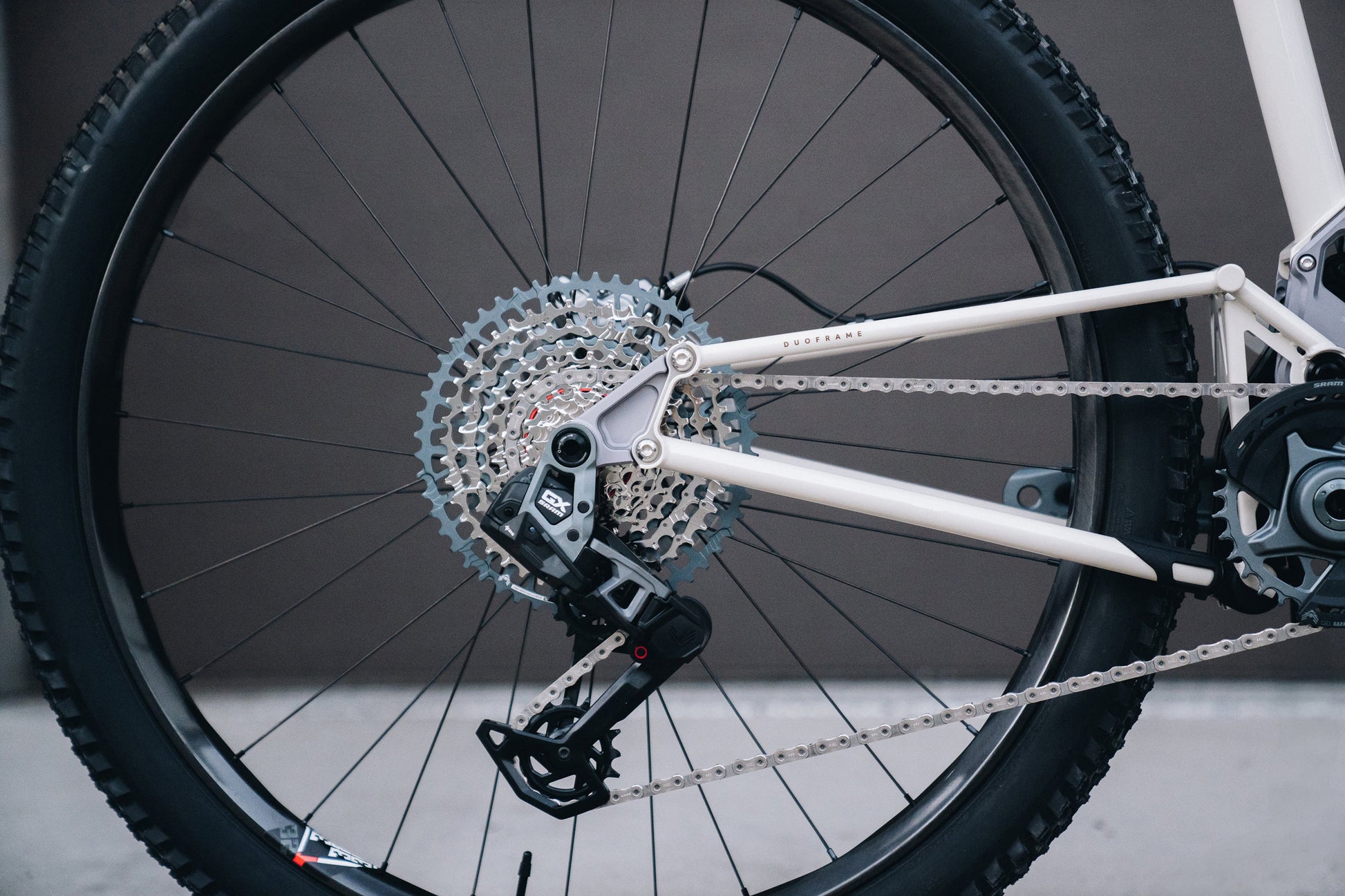

- Rear Dropout: Modular, UDH-Compatible
- Rear Wheel Spacing: BOOST 148mm
- Rear Thru-Axle: M12x1.0, 173mm long
- Rear Brake Mount: IS Mount
- Wheel Size: 29” Front and Rear
- Rear Tire Clearance: 2.4” Max
- Rotor Size: 203mm MAX
- Chainline: 55Cl
- Max Chainring: 34T
- BB Spec: 73mm BSA Threaded
- Seatpost Diameter: 31.6mm
- Seat Tube Collar/Clamp: 34.9mm
Shimano XT Build Kit
Drivetrain
- Rear Derailleur: Shimano XT 12 speed
- Shifter: Shimano XT
- Cassette: Shimano XT 10-51t
- Chain: Shimano XT 12 speed
- Crankset: Shimano XT, 170mm, 32t
- Bottom Bracket: Shimano XT BSA
Cockpit
- Brakes: Shimano XT 4-piston
- Rotors: 200mm front, 180mm rear
- Handlebars: PNW Range 35mm
- Stem: PNW Range 35mm
- Dropper Post: PNW Loam 31.6mm
- Dropper Lever: PNW Range
- Grips: PNW Loam
- Saddle: Ergon SM Saddle S/M
- Seat Clamp: Wolf Tooth 34.9mm
- Headset: Wolf Tooth Performance
Wheels & Tires
- Front Tire: Maxxis Dissector 2.4"
- Rear Tire: Maxxis Rekon 2.4"
SRAM GX Transmission Build Kit
Drivetrain
- Rear Derailleur: SRAM GX Eagle Transmission
- Shifter: SRAM POD AXS Controller
- Cassette: SRAM XG-1275 10-52t
- Chain: SRAM GX Eagle
- Crankset: SRAM GX Eagle, 170mm, 32t
- Bottom Bracket: SRAM DUB BSA 73mm
Cockpit
- Brakes: SRAM Code Bronze Stealth 4-piston caliper, 200F/180R rotors
- Handlebars: PNW Range 35mm
- Stem: PNW Range 35mm
- Dropper Post: PNW Loam 31.6mm
- Dropper Lever: PNW Range
- Grips: PNW Loam
- Saddle: Ergon SM Saddle S/M
- Seat Clamp: Wolf Tooth 34.9mm
- Headset: Wolf Tooth Performance
Tires
- Front Tire: Maxxis Dissector 2.4"
- Rear Tire: Maxxis Rekon 2.4"
SRAM XO Transmission Build Kit
Drivetrain
- Rear Derailleur: SRAM XO Eagle Transmission
- Shifter: SRAM POD AXS Controller
- Cassette: SRAM XG-1295 10-52t
- Chain: SRAM XO Eagle
- Crankset: SRAM XO Eagle, 170mm, 32t
- Bottom Bracket: SRAM DUB BSA 73mm
Cockpit
- Brakes: SRAM Code Bronze Stealth 4-piston caliper, 200F/180R rotors
- Handlebars: PNW Range 35mm
- Stem: PNW Range 35mm
- Dropper Post: PNW Loam 31.6mm
- Dropper Lever: PNW Range
- Grips: PNW Loam
- Saddle: Ergon SM Saddle S/M
- Seat Clamp: Wolf Tooth 34.9mm
- Headset: Wolf Tooth Performance
Tires
- Front Tire: Maxxis Dissector 2.4"
- Rear Tire: Maxxis Rekon 2.4"
SRAM XX Transmission Build Kit
Drivetrain
- Rear Derailleur: SRAM XX Eagle Transmission
- Shifter: SRAM POD AXS Controller
- Cassette: SRAM XS-1297 10-52t
- Chain: SRAM XX Eagle
- Crankset: SRAM XX Carbon, 170mm, 32t
- Bottom Bracket: SRAM DUB BSA 73mm
Cockpit
- Brakes: SRAM Code Ultimate Stealth 4-piston caliper, 200F/180R rotors
- Handlebars: PNW Range 35mm
- Stem: PNW Range 35mm
- Dropper Post: PNW Loam 31.6mm
- Dropper Lever: PNW Range
- Grips: PNW Loam
- Saddle: Ergon SM Saddle S/M
- Seat Clamp: Wolf Tooth 34.9mm
- Headset: Wolf Tooth Performance
Tires
- Front Tire: Maxxis Dissector 2.4"
- Rear Tire: Maxxis Rekon 2.4"
Key Benefits
-
Modular
The Apogee One's modular design ensures stiffness where needed and flexibility for tuning a buttery smooth ride feel.
-
Compact
The precision-machined Free Float Module (FFM) keeps pivots aligned for bearing longevity and small bump compliance that fits into a small package.
-
Tuned
The steel DuoFrame is strong and durable, allowing us to shape it for optimal flex, providing excellent handling without feeling noodly.
![](http://apogee.bike/cdn/shop/files/Group_520.png?v=1723003298&width=1500)

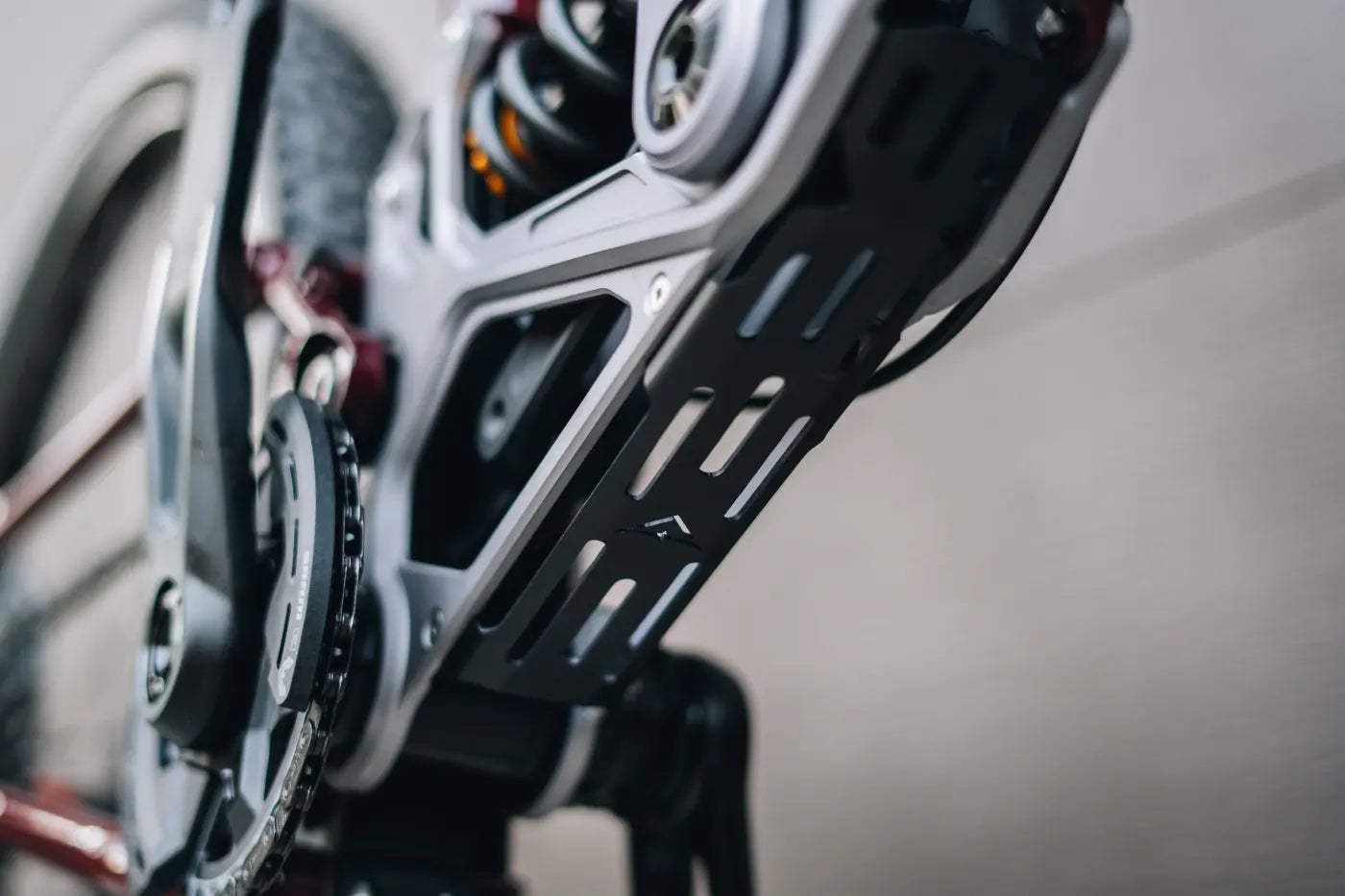

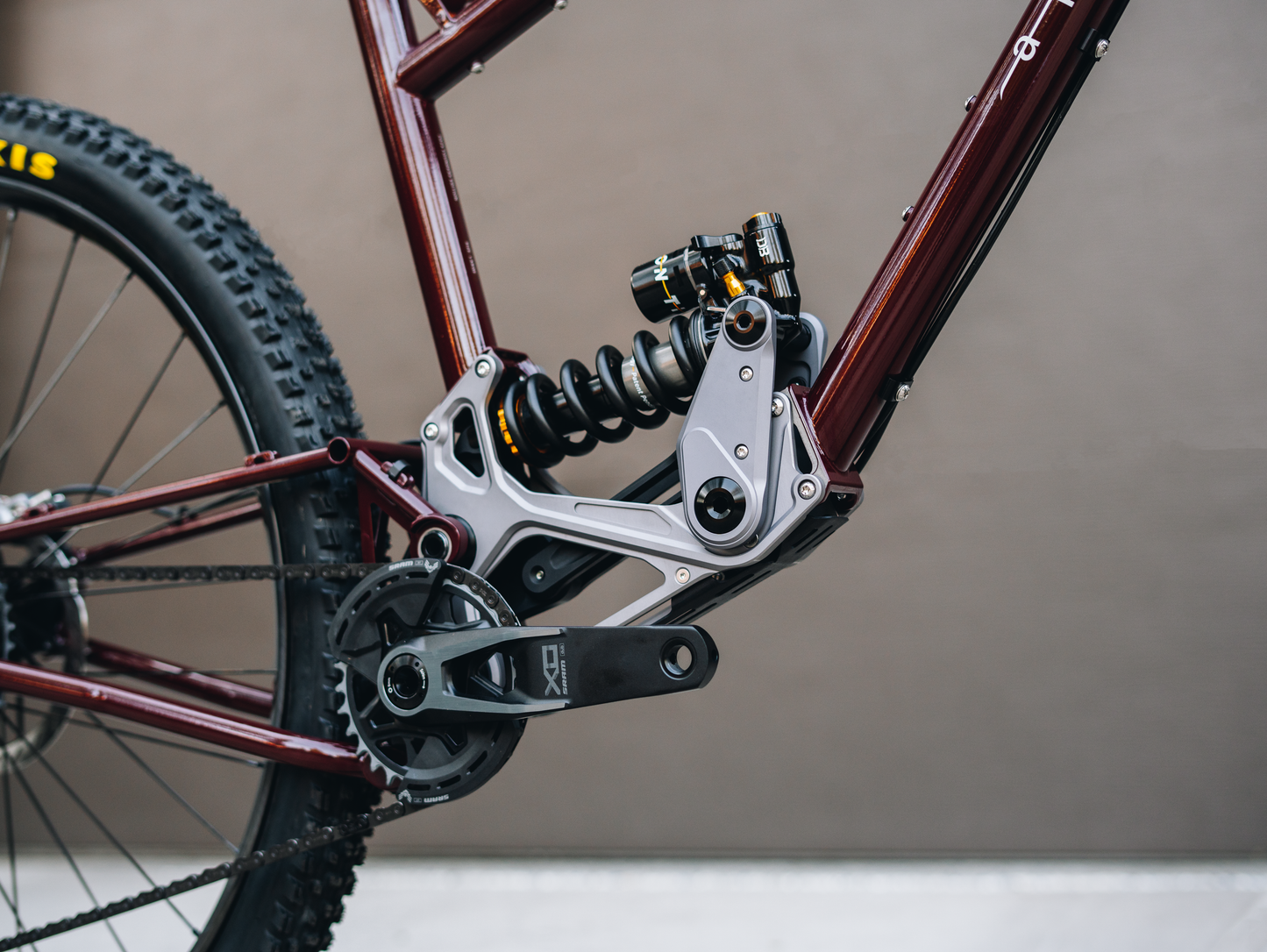

The FFM is a Beautifully, Precision-Machined Marvel
Our Free Float Module (FFM) brings the Apogee One’s suspension pivots into a compact, beautiful, precision-machined assembly that keeps the center of gravity low for that on-rails cornering feel. We use Enduro MAX bearings in every pivot to keep our corner-carving suspension running smooth for seasons to come.
![](http://apogee.bike/cdn/shop/files/Group_521_0ccec160-e6af-462b-ac44-5d7dc8432b99.png?v=1723003264&width=1500)
DuoFrame Design Makes for the Best Ride Quality
Decoupling the frame and suspension means we can tune the size and response of the front and rear triangles without affecting the suspension giving the Apogee One an unparalleled fit and a ride like no other steel mountain bike out there.
Suspension Kinematics
-
Leverage Ratio
-
Anti-Squat
How It's Built
-
Made in the USA
Every part of the Apogee One is sourced and made by our US-based team and suppliers. Frame and suspension kinematics design are all designed in-house. Each frame is hand welded in Seattle, WA. Every Free-Float Module is machined and assembled by hand in South Lake Tahoe, CA.
-
ISO Tested
See it in ActionIn addition to over two years of research and development, the Apogee One design is backed by ISO 4210 testing for Falling Mass, Falling Frame, Horizontal Fatigue, Vertical Fatigue, BB Vertical Load, Tire Contact Fatigue, and Pedal Fatigue.
-
3-year warranty
Read MoreWe're passionate about ensuring riders can enjoy their coveted, high performance Apogee One for years to come. So, every frame comes with a 3-year warranty covering defects in materials and workmanship for both the steel frame and suspension module components.
Height (in) | Height (cm) | |
---|---|---|
Small (SM) | 4' 11" — 5' 3" | 150-160 |
Medium (M) | 5'2 — 5'8" | 157—173 |
Medium Large (ML) | 5'5" — 5'11" | 165-180 |
Large (L) | 5'8" — 6'2" | 173-188 |
X-Large (XL) | 5'10" — 6'6" | 180-193 |
S | M | M/L | L | XL | |
---|---|---|---|---|---|
Rear travel | 140mm | 140mm | 140mm | 140mm | 140mm |
Head tube angle | 64° | 64° | 64° | 64° | 64° |
Head tube length | 90mm | 100mm | 110mm | 120mm | 130mm |
Top tube length (virtual) | 568mm | 582mm | 600mm | 630mm | 660mm |
Stack | 614mm | 623mm | 633mm | 642mm | 651mm |
Reach | 440mm | 455mm | 470mm | 500mm | 530mm |
Seat tube angle | 78° | 78° | 78° | 78° | 78° |
Seat tube length | 380mm | 400mm | 420mm | 440mm | 480mm |
Chainstay length | 440mm | 440mm | 440mm | 440mm | 440mm |
Bottom Bracket Drop | 32mm | 32mm | 32mm | 32mm | 32mm |
Wheelbase | 1214mm | 1233mm | 1253mm | 1287mm | 1322mm |
Wheel Size | 29" | 29" | 29" | 29" | 29" |
